AMS-99V

Heat Insulation Coating for Glass

Product parameters

    • Components:Single component

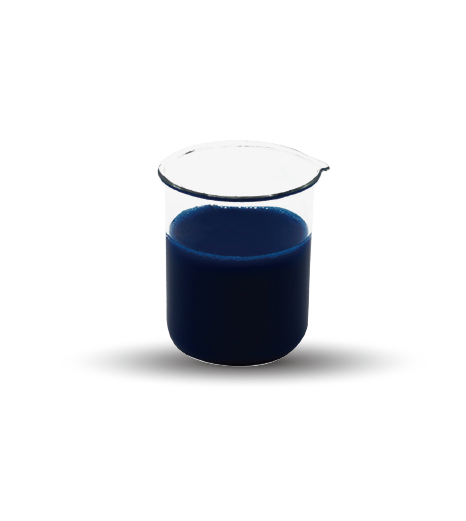

    • AppearanceBlue-black liquid
    • Solid content%29±1
    • Density:0.95g/ml
    • Coating methodScrape
    • Coating thickness3~4μm
    • Surface hardness of the coating:8H (Mitsubishi Pencil)
    • AdhesionLevel 0
    • Abrasion resistance>4,000times
    • Time to work>7days
    • Transmittance of visible light:75%
    • Infrared barrier rate>90%(1400nm)
    • UV blocking rate:99%
    • Masking coefficient:0.49
    • Thermal insulation temperature difference:10~18℃ (laboratory)
    • Save Energy:28~32%
    • Table dry time:20-60minutes (depending on ambient temperature)


Reference price:

Functional Dispersion Liquid

Functional Masterbatch

Functional Coatings

Functional Textile Finishing Agents

Product Introduction

This product is an upgraded transparent glass insulation coating, which solves the problems of the traditional glass insulation coating, such as difficult construction, low index, poor weather resistance, etc,the utility model has the advantages of good transparency, high clarity, high heat insulation rate, strong weatherability, etc. When the visible light transmission rate is 75%, the infrared ray barrier rate is more than 90% . It can greatly improve the comfort of human body and reduce the energy consumption of air conditioning.

Product Features

Simple construction, excellent leveling;
High Definition, good heat insulation performance, does not affect the visibility and lighting requirements, heat insulation and energy-saving effect is significant;
Strong weather resistance, QUV5000 hours, no attenuation of heat insulation performance, no color change, service life of 10 to 20 years;

Usage method

Select spraying, rubbing, spraying and other appropriate methods for the construction, before the construction of the proposed small area test.
Step 1: coating. Select the appropriate process for coating.
Step 2: Cure. The coating was cured by heating at 130℃ for 1~3 minutes.

Uses

Used for building glass thermal insulation, such as business buildings, hotels, high-end restaurants, ceiling glass, residential, improve the comfort and energy efficiency;
Used for other industrial glass with the need of shielding infrared ray and ultraviolet ray.

Packaging and Storage

Packing: 100mL/bottle, 1L/bottle, 2L/bottle, 20L/barrel;
Storage: should be sealed storage temperature 40℃ below the environment, away from heat, fire and power, shelf life of 6 months.
