Heat Insulation Medium for Window Film(Low VLT)

Product parameters

    • Appearance: Black liquid
    • Solid content: 21%
    • VLT/IRR,%35/90
    • Primary particle size: 20~30nm
    • Specific gravity: 1.1
    • Fog(H)≤0.5%
    • Mix with resin2:4
    • Infrared blocking band780~2500nm




Product parameters

    • Appearance: Black liquid
    • Solid content: 15%
    • VLT/IRR,%15/90
    • Primary particle size20~30nm
    • Specific gravity1.05
    • Fog(H)≤0.5%
    • Mix with resin2.5:4
    • Infrared blocking band780~2500nm

Product parameters

    • Appearance: Black liquid
    • Solid content11%
    • VLT/IRR,%05/95
    • Primary particle size20~30nm
    • Specific gravity: 1
    • Fog(H)≤0.5%
    • Mix with resin3:4
    • Infrared blocking band780~2500nm
Reference price:

Functional Dispersion Liquid

Functional Masterbatch

Functional Coatings

Functional Textile Finishing Agents

Product Introduction

This product is the core material of low light transmittance heat insulation window film, it has excellent barrier performance to sunlight, low visible light can achieve good privacy protection. The series of products are easy to use, no special deployment, weather resistance, high definition, excellent optical indicators.

Product Features

High insulation:The effect of heat insulation is remarkable;
High weatherability:QUV5000h+,Double 85 test 2000h+,No change in performance;
High-definition:Haze value 值(H)≤0.5%;
High-definition:Can be used with most of the window film glue (acrylic resin, polyurethane, etc.) matching.

Usage method

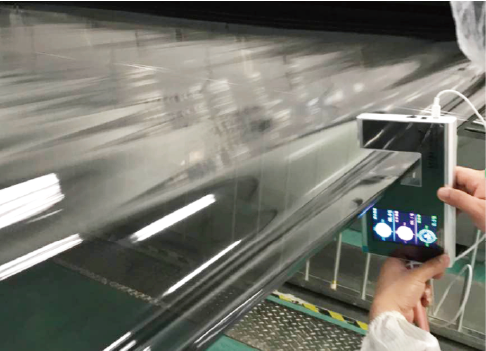

According to the suggested adding proportion, the film was mixed with the carrier resin, and then coated on the machine to produce VLT5%~35% , IRR90%~95% low-transmittance and high-definition nano-ceramic insulation film.

Uses

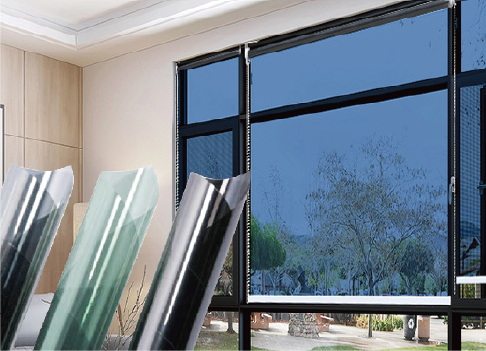

For the production of low light transmission and high performance (high definition, high insulation) heat insulation window film, heat insulation and energy saving, protection of privacy, improve comfort, or for other need to block infrared field.

Packaging and Storage

Packing: 20kg/barrel.
Storage: keep in a cool, dry place, away from direct sunlight.
