Heat Insulation & Anti-infrared Dispersion Liquid for PVC Film

Product parameters

    • Appearance: Dark Blue Liquid
    • Active ingredient: Tungsten, titanium and tin oxides
    • Solid content: 30%
    • Primary particle size: 40~50nm
    • Specific gravity: 1.10
    • VLT+IRR,%: ≤160
    • Infrared blocking band: 780~2500nm


Product parameters

    • Appearance: Blue-black liquid
    • Active ingredient: Tungsten, vanadium, tin, antimony oxides
    • Solid content: 20%
    • Primary particle size: 40~50nm
    • Specific gravity: 1.20
    • VLT+IRR,%: ≤165
    • Infrared blocking band: 780~2500nm
Reference price:

Functional Dispersion Liquid

Functional Masterbatch

Functional Coatings

Functional Textile Finishing Agents

Product Introduction

Product Features

The particles are small and uniform, which will not affect the physical properties of PVC membrane;
Good transparency, high heat insulation rate. When the visible light transmittance is 70% , the infrared ray blocking rate is more than 95%;
Strong weather resistance,QUV 5000h+ No attenuation of thermal insulation,No change in color;
Dispersion system stability, long-term preservation without stratification, no precipitation.

Usage method

Mix the PVC resin with the recommended amount according to the required index parameters.

Uses

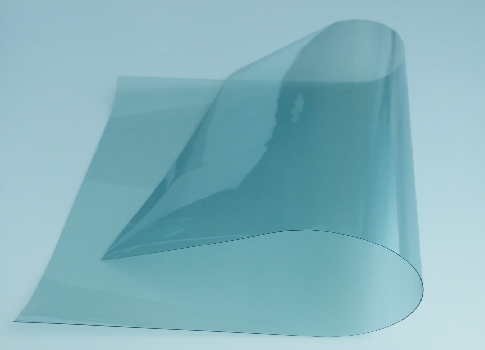

For the production and development of thermal insulation infrared PVC film for thermal insulation curtain or installed in the building glass curtain wall, play a role in thermal insulation energy saving, improve human comfort.

Packaging and Storage

Packing: 20kg/barrel.
Storage: keep in a cool, dry place, away from direct sunlight.
