Current location： Home Product Heat Insulation Medium for Window Film(High VLT)





G-P35-EA/CQ81G18-TOL

G82130-TOL/GTO-82116-B35

Product parameters

Match the glue：Polyacrylic acid resin, etc.
Appearance：Blue-black liquid
Effective solid content：35%
Primary particle size：40~50nm
Specific gravity：1.30
VLT+IRR，%：165~169
Fog（H）：≤0.5%
Infrared blocking band：780~2500nm

Product parameters

Match the glue：Polyurethane, etc.
Appearance：Blue-black liquid
Effective solid content：30%
Primary particle size：40~50nm
Specific gravity：1.25
VLT+IRR，%：165~169
Fog（H）：≤0.5%
Infrared blocking band：780~2500nm

Reference price：

Add to shopping cart

Buy

Functional Powder

Functional Dispersion Liquid

Functional Masterbatch

Functional Coatings

Functional Textile Finishing Agents

Functional Film

Functional Non-woven Fabric

Product Introduction

This product is the production of high-transparent thermal insulation window film of the core raw materials, its infrared heat of the sun, with excellent barrier performance, the production of nano-ceramic thermal insulation film, with high transparency, high insulation, high definition, high weather resistance.

Product Features

High Performance:VLT+IRR Up to 169, high transparency, high insulation；
High Weatherman：QUV5000h+，No change in performance；
High-definition:Haze value（H）≤0.5%；
High versatility：Can be used with most of the window film glue（acrylic resin, polyurethane, etc.) matching.

Usage method

According to the requirements of the parameters, in accordance with the proposal to add the proportion and the carrier resin fully stir fusion, on machine coating.
Reference addition ratio:
→ Insulation Medium: resin（40%）=1.5：4
→ Dry film thickness = 8 microns
→ VLT：70% IRR：99%

Uses

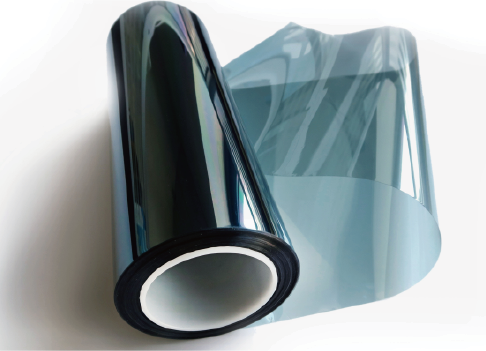

It is used to produce high performance (high definition, high transparency, high heat insulation, high weather resistance) heat insulation window film, play the role of heat insulation and energy saving, improve comfort, or for other need to block infrared field.
